Cogeneration Module

Our Modules

Find Out More? Call

+216 97 386 183

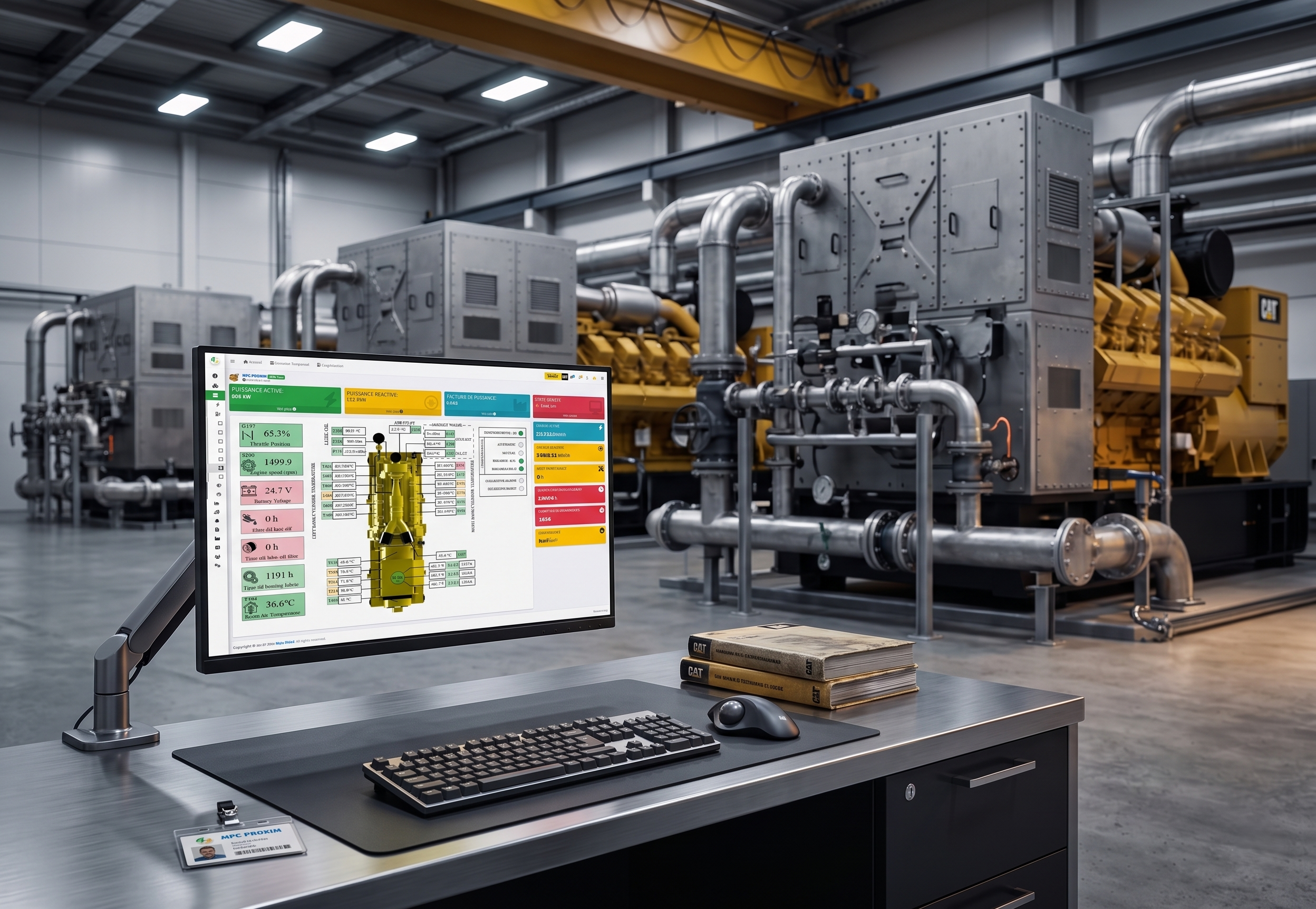

EnergySave Gen-Set Engine Dashboard

Cogeneration & Generator Sets (Gen-Sets) Module

The EnergySave Cogeneration module is specifically designed for in-depth supervision of generator engines (Gen-Sets) used in industrial cogeneration, trigeneration, or backup installations. It ensures real-time tracking of electrical production and thermal efficiency parameters.

The interface offers a comprehensive synoptic modeling of the equipment, allowing operators to simultaneously audit its electrical components (power, voltage, cos phi) and its mechanical health, thereby guaranteeing total control over the availability of their assets.

Generator performance overview

Mechanical & Thermal Health

Direct visibility into
the engine's vital organs.

  • Thermal mapping per cylinder (Right/Left Bank)
  • Fluid monitoring (Oil and Water Pressure/Temp.)
  • Supervision of engine speed and throttle valve

Predictive Maintenance & Safety: To optimize the infrastructure's lifespan, the module integrates predictive maintenance tools linked to the machine's actual wear (countdowns before oil changes, filters, etc.). Furthermore, immediate reporting of anomalies (via alarms classified by criticality level) secures operations, allowing teams to intervene quickly before a drift turns into a major breakdown.

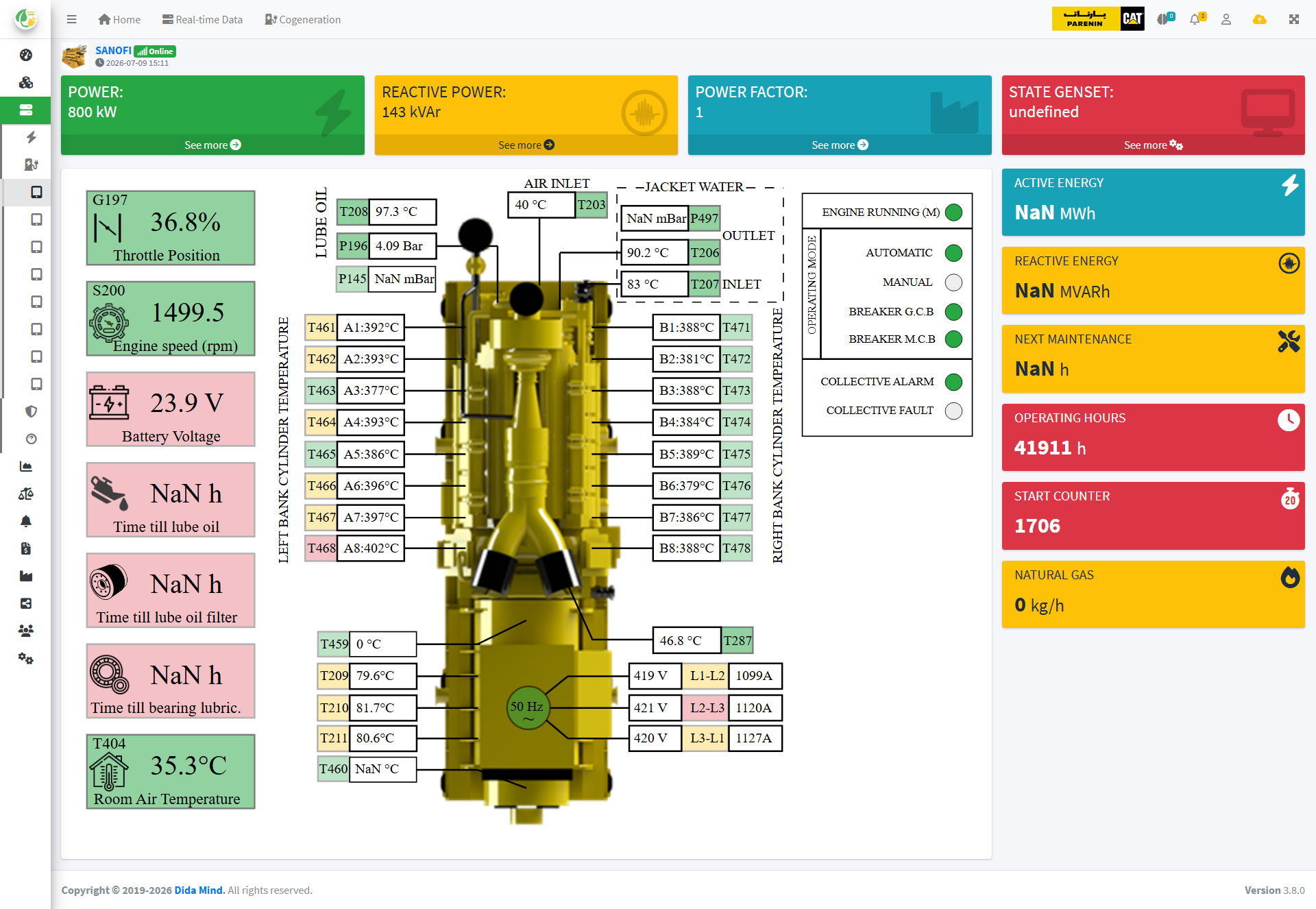

Detailed view of a Gen-Set engine

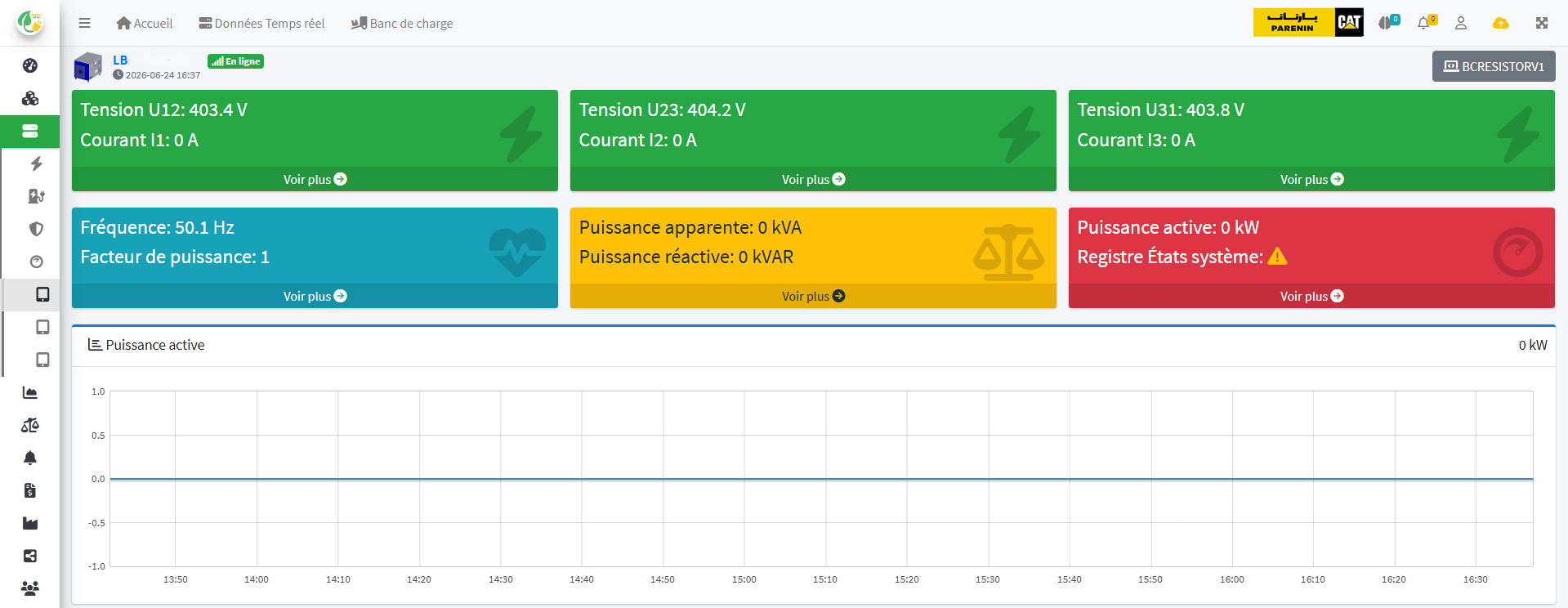

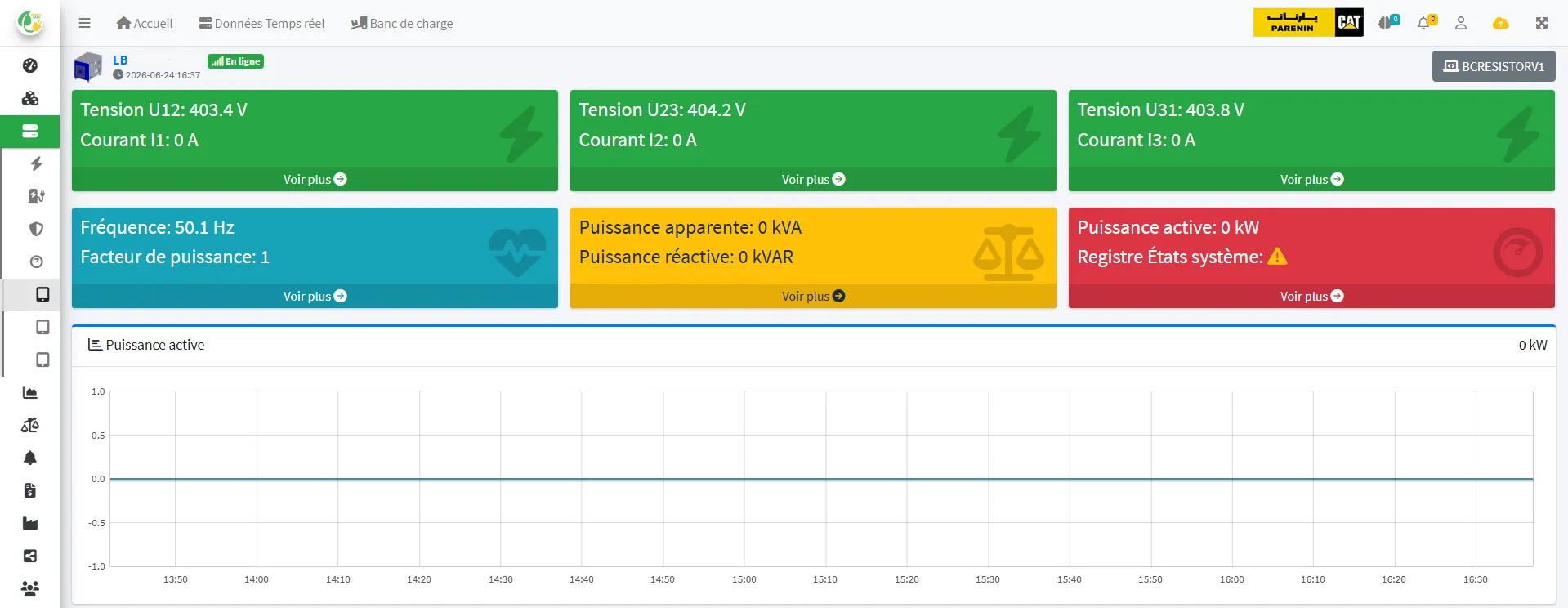

Detailed view of a load bank

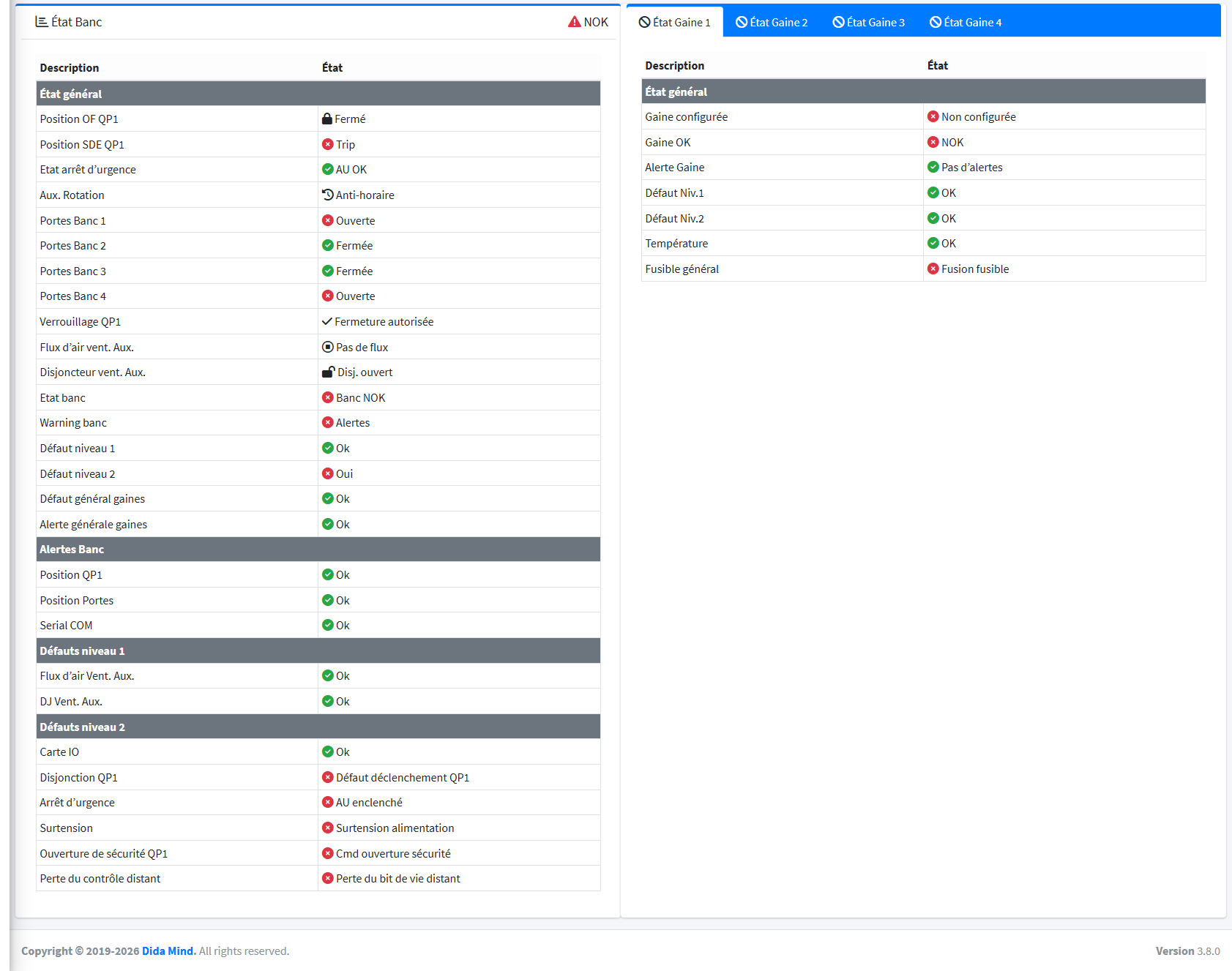

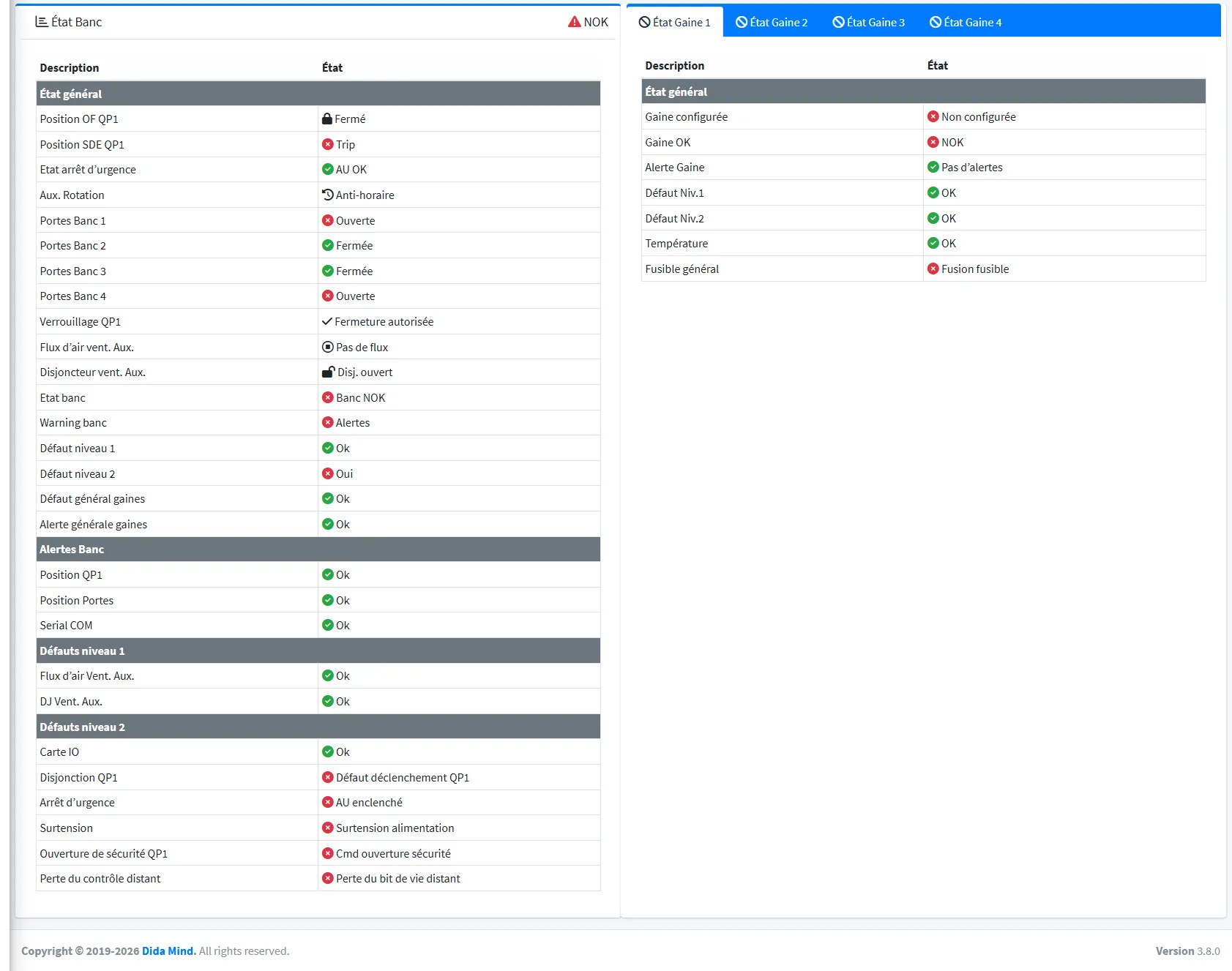

Supervision of Load Bank testing

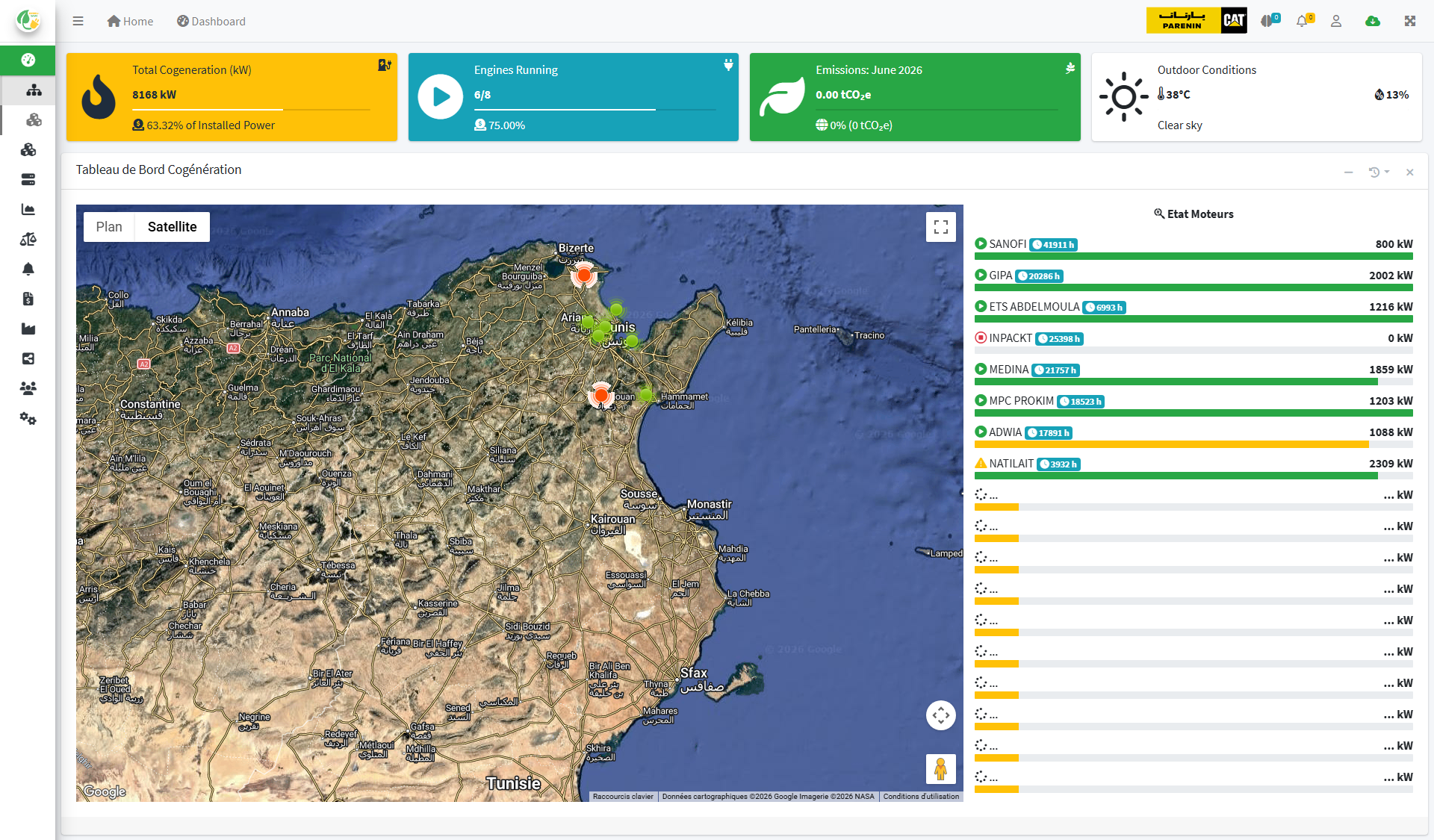

Global dashboard and multi-site mapping

Frequently Asked Questions (Cogeneration & Load Banks)

Discover how EnergySave secures the operation and testing of your generator sets.

Yes, the module integrates the supervision of load banks. It allows live tracking of the applied power evolution (load profile), while monitoring the safety of the dissipation equipment (ventilation, door openings, circuit breaker states), ensuring secure and documented tests.
Absolutely. Thanks to EnergySave's native Chart Comparator, you can overlay data (such as cylinder temperature or gas consumption) from multiple engines, or even compare both cylinder banks of the same engine over a given period to facilitate internal benchmarking.
For geographically distributed generator parks, the global dashboard displays an interactive world map. It centralizes macroscopic indicators: total generated power, ratio of operating engines, weather conditions, and integrates a HeatMap to immediately identify daily load cycles.
